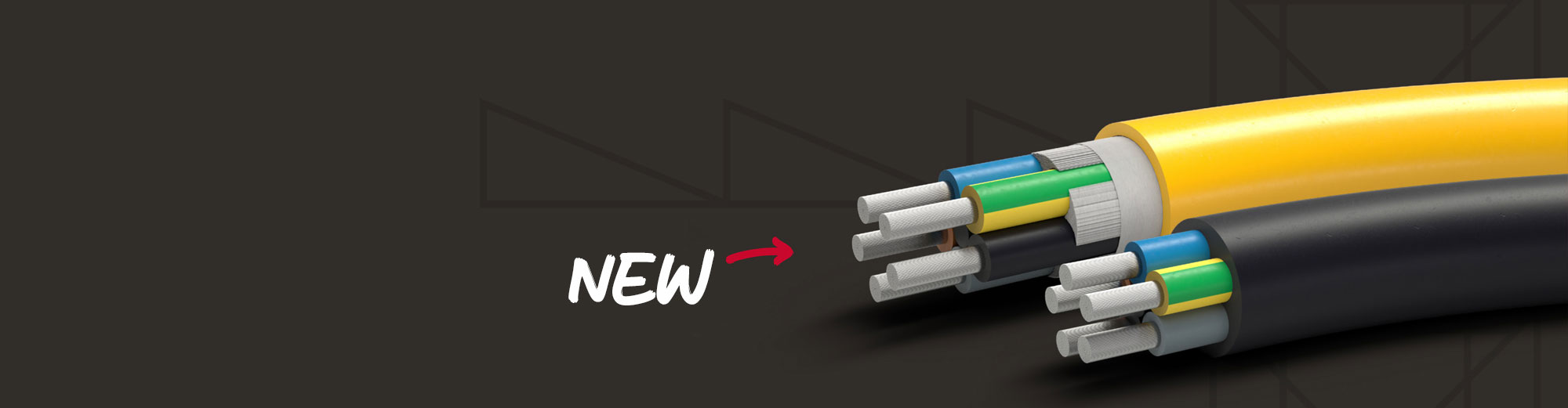

Meinhart VERROX

HIGH-PERFORMANCE ALUMINIUM CABLES

With Meinhart Verrox, Meinhart offers robust and flexible aluminium cables for demanding applications.
Much lighter than copper, economically viable and made for tough environments – where reliability counts.

Meinhart VERROX benefits at a glance:

Significantly lighter weight

Aluminium conductors noticeably reduce overall weight – for easier handling, faster installation and less physical effort on the construction site.

Economically attractive

Aluminium as a conductor material provides an affordable alternative to copper – particularly useful for longer cables and larger projects.

Flexible & robust

Fine-wire version with durable rubber or PUR sheath for moderate mechanical stress.

High temperature resistance

Permissible conductor temperature up to 90 °C (07BN4-AF) – comparable or in some cases higher than with conventional copper/rubber-hose cables.

Weather resistant & environmentally stable

Resistant to UV, ozone, oil, humidity and moisture – ideal for indoor and outdoor use.

Meinhart VERROX 07BN4-AF

Aluminium/rubber-hose cable

Rubber-hose cable for moderate mechanical stress in dry, damp and wet rooms, as well as outdoors. Suitable for use in agricultural and commercial operations, as well as on construction sites – for connecting tools, appliances, machinery and portable generators.

  1. Aluminium conductor
  2. Core insulation made of rubber compound EPR
  3. Outer sheath made of rubber compound EM7

Meinhart VERROX 07BN4-AF

Technical data:

Rated voltage
450V/750V (Uo​/U)



AC test voltage
3.500 V



Temperature ranges
Installation: -25 °C to +80 °C
Permanently installed: -40 °C to +80 °C
Short circuit: max. 250 °C (5 s)

Bending radius
Installation: 8 x OD
Permanently installed: 6 x OD



AD8 approval
For permanent Installation in water
(optional)

CPR classification
Eca



Fire behaviour
EN 60332-1-2



UV resistance
YES



Oil resistance
YES



Conformity
RoHS 2011/65/EU
CE 2014/35/EU
REACH 1907/2006



Nominal cross-section
[mm²]		Aluminium weight
[kg/km]		Outer diameter
[mm]		Weight
[kg/km]
1x257313,7244
1x3510215,7313
1x5014518414
1x7020520,3530
1x95275,522,8671
1x12034825810
1x15043527,7929
1x185536,530,31179
1x24069633,71465
1x30087036,51618
1x400116040,82071
4G25291341320
4G35408381650
4G5058241,502045
4G7081246,32692
4G95110251,93400
4G120139256,94093
4G150174064,15187
4G185214670,96311
4G2402784808055
5G45817,2324
5G68920482
5G1015226,2833
5G1623029,51066
5G25362,535,11517
5G3550839,71910
5G50725462577
5G70102252,23327
5G95137857,53945
5G120174063,95014
5G150217570,66100
5G185268379,17209
5G240348086,78814

Meinhart VERROX 07BQ-AF

Aluminium-PUR sheathed cable

Halogen-free PUR sheathed cable, resistant to abrasion, cuts and notches, with fine-wire aluminium conductor. Resistant to oil and grease, designed for moderate mechanical stress in dry, damp and wet rooms, as well as outdoors – ideal for agricultural and commercial applications, as well as construction sites.

  1. Aluminium conductor
  2. Core insulation made of rubber compound
  3. Filling sheath
  4. PUR outer sheath

Meinhart VERROX 07BQ-AF

Technical data:

Rated voltage
450V/750V (Uo​/U)



AC test voltage
2.500 V



Temperature ranges
Permiss. temperature at conductor: max. 90 °C
Short-circuit temp. at conductor: max. 250 °C

Bending radius
Smallest
bending radius: 6 x OD



Fire behaviour
EN 60332-1-2



UV resistance
EN 60811-403



Oil resistance
EN 60811-404



Conformity
RoHS 2011/65/EU
CE 2014/35/EU
REACH 1907/2006



Nominal cross-section [mm²]Outer diameter [mm]Weight [kg/km]
5G1023,4607
5G1626,6791
